When used together in grooved piping systems, this power pair combination of the Gruvlok 74-CL coupling and 8700 butterfly valve improves installation efficiency and long-term system performance.
In modern mechanical systems, labor represents the largest variable cost. We believe that true system efficiency is a balance of installation speed and long-term operational performance. Using the Gruvlok 74-CL Coupling alongside the Series 8700 Butterfly Valve helps contractors reduce installation man-hours while also lowering system operating demands.
The 74-CL is shipped ready for install. Do not disassemble the coupling before installation. That step is where much of the labor savings is gained.

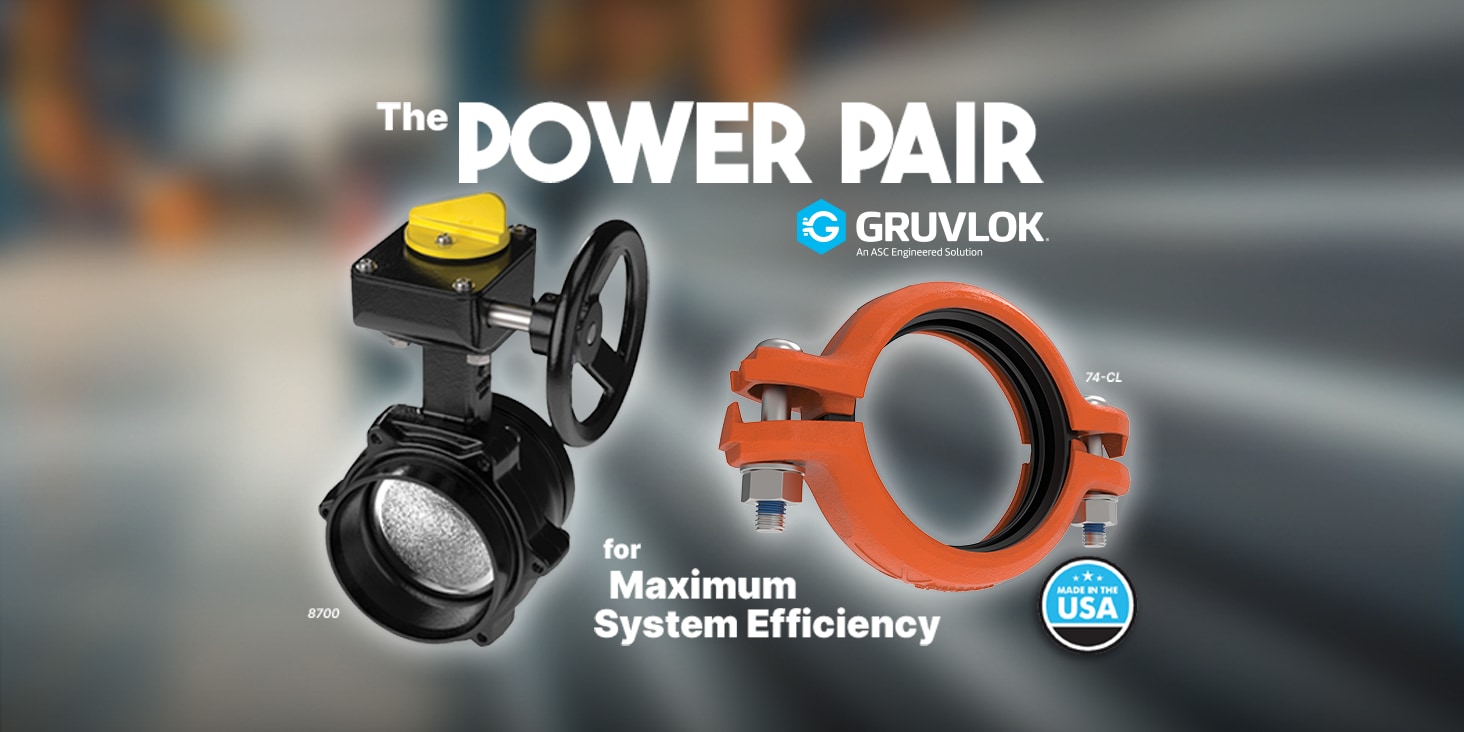

Take a closer look at the Gruvlok 74-CL Coupling and 8700 butterfly valve
Download the 74-CL Flyer // Download the Series 8700 Flyer
Installation Efficiency:
Installed in 6 seconds or less
The 74-CL is engineered with Sabertooth™ Installation Technology, removing the traditional “measure twice, tighten once” slow-down.
- Ready-for-Install Design: No disassembly required. The coupling slides directly onto the grooved pipe end just the way you take it out of the box..
- Tactile Verification: Sabertooth bolt pads provide a physical stop, eliminating the need for torque wrenches or visual guesswork.
- CenterLOK™ Gasket: Features a center pipe-stop rib to ensure proper alignment, helping prevent gasket pinching which is a leading cause of rework.
Install times drop from minutes to seconds per joint. Across a full system, that translates directly into fewer labor hours and more predictable installs.
Operational Efficiency:
Low Torque is the Advantage
While the coupling secures the line, the Series 8700 Butterfly Valve is designed to optimize flow and reduce resistance.
- Up to 39% Torque Reduction: The offset disc design reduces the force required to open and close the valve.
- Reduced Actuator Costs: Lower torque requirements allow for smaller actuators, reducing both upfront cost and energy demand.
- Bubble-Tight Seal (up to 400 psi): Helps minimize internal leakage and maintain system efficiency.
Chemical & Industrial Resilience
For contractors in chemical, industrial, and aggressive environments, material performance is critical. These components are built to handle those conditions.
- Eco Guard™ Coating: A proprietary finish designed to provide strong corrosion resistance in harsh environments.
- Field Serviceability: The Series 8700 Butterfly Valve features a two-piece bolted body, allowing seat or disc replacement without removing the valve from the line.
If you are trying to save time on install and avoid issues later, this is a solid setup. The 74-CL speeds up every connection. The Series 8700 Butterfly Valve lowers operating load. This means faster jobs and fewer problems.
Gruvlok 74-CL Coupling and 8700 Butterfly Valve Engineering Comparison Fast Facts
| Standard Grooved System | 74-CL + 8700 | Contractor Value | |
| Installation Time | 2-3 Minutes | < 6 Seconds | Reduced Labor Units |
| Operating Torque | High (Standard Disc) | Up to 39% Lower (Offset Disc) | Smaller Actuators |
| Verification | Visual Only | Tactile (Sabertooth™) | Reduced Rework |
| Coating | Standard Paint/Galv | Eco Guard™ | Extended Service Life |
CONTACT US
- Email: sales@indpipe.com
- Phone: 781-828-8500
SEE FOR YOURSELF
THE WRAP UP
For contractors looking to reduce labor and improve performance, this rigid coupling and butterfly valve pair is for you. The Gruvlok 74-CL Rigid Coupling simplifies grooved piping installation with faster, more consistent connections, while the Series 8700 Butterfly Valve lowers torque and supports efficient system operation. Used together, they help cut installation time, reduce rework, and improve long-term reliability. This approach supports the tighter schedules that commercial and mechanical contractors often face which is why choosing the right components makes a measurable difference on every job.
